Data Movement Handbook

Move Structured Records Without Losing Trust

Disciplined transfers with mapping, validation, and monitoring — from first sync to steady operation.

Run the implementation checklist Read how programmable keys work

What this handbook covers

Data movement is the disciplined transfer of records between systems with mapping, validation, and monitoring. This handbook shows how U.S. teams keep those transfers accurate from first sync to steady operation.

It pairs well with the key guide, since access control and data quality fail together when either is weak. If a key allows too much, bad rows spread fast. If validation is loose, even a well-scoped key carries bad data into places that trust it. Read the two together when you plan a new flow: who may call it, what each field means, how errors return, and where the proof lives.

Field mapping Validation checks Delivery monitoring

How to use this page

  • Start with the field map. Every later fix costs more than one agreed line in the map.

  • Put validation where records enter. Clear error codes save support hours.

  • Give each flow an owner and a readable log. Unowned flows fail quietly.

Applithic, 450 Serra Mall, Stanford, CA — call +1-650-723-2300 to talk through a pattern.

Flight board

Three habits that keep every sync honest

Rows cross the board left to right. Each lane holds one rule, its owner, and what good looks like.

Data flow mapping · Validation · Recovery

Map Fields Before You Move Rows

Owner: both system owners · Before code ships

Every flow starts with a field map: source field, target field, type, required or optional, and an example value. Write time zones, currency codes, and ID formats into the map so both sides interpret values the same way.

A California retail team syncing orders, for example, must agree whether timestamps are Pacific Time or UTC. Without that line in the map, reports drift by hours. Review the map with both system owners before code ships, and keep one signed copy where support can find it. When a new field appears, add it to the map first — code second.

Validate on Entry, Not After Complaints

Owner: receiving team · At the door

Place checks where data enters your system: type, range, allowed values, and referential integrity. Reject a record with a clear code like missing_customer_id or invalid_postal_code rather than storing a half-correct row.

Return that code to the sender when possible so fixes happen upstream, where the context still exists. Early data validation checks cut support work and give product managers real error counts to prioritize. Track rejections by rule for two weeks after launch — the top rule usually points to a map line that needs a rewrite.

Handle Retries and Dead Letters

Owner: flow owner · Weekly review

Networks fail and targets throttle. Use bounded retries with backoff for transient errors, and a separate queue for records that keep failing. That dead-letter queue needs an owner and a weekly review, or it becomes a silent landfill.

Include the original payload, the error code, and the attempt history with each held record. Replaying from that queue after a fix beats asking partners to resend files. Cap retries — three to five tries with growing pauses covers most blips — then park the record with context so a person can decide next.

Hands placing key cartridges in a steel bench jig

Readable proof

Keep an Audit Trail Teams Can Read

Each transfer should record when it ran, what key called it, how many records were accepted, and how many were rejected with reasons. Store this summary where support can find it without engineer help.

During a dispute over missing inventory updates, that summary answers the question in minutes: did the run happen, which credential called it, and which rows were turned away. Keep detail long enough to cover your reporting cycle. Summaries stay; raw payloads with personal data should follow your retention policy, with access limited to named roles.

  • When it ran — start, finish, and flow name in plain time.
  • What called it — key ID paired with the flow it may use.
  • What passed — accepted count per run, kept by week.
  • What did not — rejected count with rule names attached.

Production habit

Monitor Flows Like Production Services

Treat each flow as a service with health signals: success rate, latency, backlog size, and rejection rate by rule. Alert when rejection spikes or backlog grows past a threshold you set from normal weeks.

A dashboard that shows yesterday versus today helps non-engineers spot trouble early — no query needed, just two columns side by side. Assign one owner per flow. Unowned flows are the ones that break quietly on holidays, when nobody watches the queue depth climb.

Yesterday vs today

Backlog

Calm yesterday, watched today

Rejected by rule

Grouped, named, owned

Engineer reviewing a movement ledger at a workstation

History, safely

Backfills Without Double Counting

Backfills reload history after a fix or a new integration. They need idempotency keys so replays do not create duplicates.

Run backfills in small batches with pauses to avoid throttling the target. Compare counts before and after: source rows, accepted rows, rejected rows. Document the window you reloaded. That note prevents double refunds or duplicate shipments when finance reviews the month.

Practical order: freeze the window, replay small, confirm counts, then release. Write the window on the run record.

Least privilege, in transit

Privacy and Minimization in Transit

Move only fields the target truly needs. If a marketing sync does not need full addresses, send city and postal code only. Strip secrets and tokens from logged payloads. Use encrypted transport and limit who can view dead-letter contents.

These habits reduce exposure if logs are shared during debugging. They also make data requests simpler to answer, because there is less to find and explain.

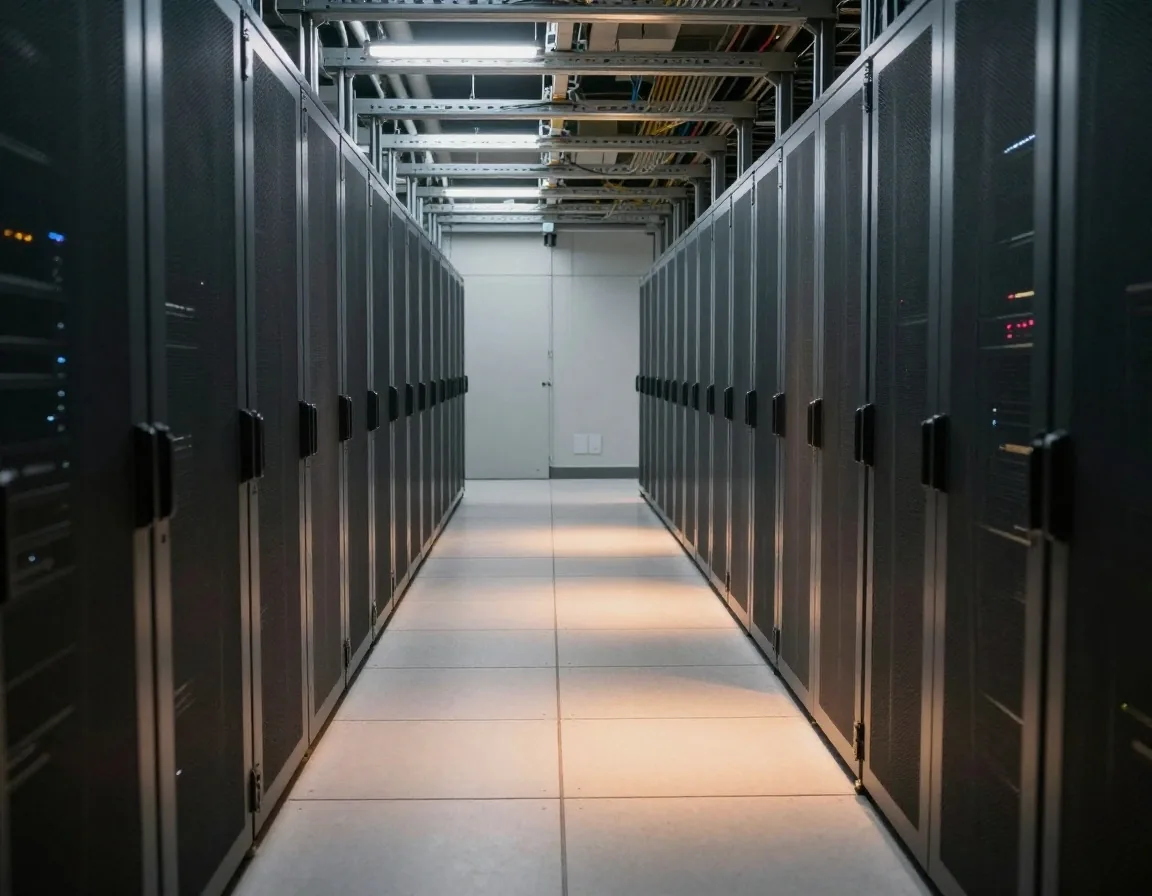

Server racks and issuance hardware in an operations hall

Connect Keys to Flow Permissions

Each flow should run under a key whose scope matches its job. A nightly inventory sync needs write access to one endpoint, not full admin rights.

When you rotate that key, confirm the flow still succeeds under the new credential before disabling the old one. Log both key ID and flow name together. That pairing lets you revoke precisely when a single flow misbehaves, without pausing everything else that shares the system.

What does a well-scoped flow key look like?

One flow, one key, one endpoint family, with an expiry and a named owner. If the inventory sync only writes stock levels, that key cannot read customer records or change user roles.

How do we rotate without breaking the nightly run?

Issue the new key, run the flow once under it during business hours, check accepted and rejected counts, then disable the old key. Keep both IDs in the run log for that week.

Where can we read more about programmable keys?

The companion guide explains scopes, rotation, and revocation in plain terms. Read how programmable keys work before you widen any flow permission.

Ask about a data flow pattern Run the implementation checklist

Talk to a person

Bring your field map — we will read it with you

Applithic helps product and engineering teams shape reliable data movement: mapping, validation, and monitoring that support can actually use. Write to [email protected] or call +1-650-723-2300, Monday–Friday 9:00 AM – 6:00 PM.

Find us at 450 Serra Mall, Stanford, CA 94305, USA. Learn about Applithic or contact the team to discuss a flow pattern.

Replies on business days · No intake form on this page

450 Serra Mall, Stanford, CA 94305, USA

Next step

Move the next sync with proof attached

Use the checklist to lock the map, checks, and logs — then review key scopes so each flow carries only what it needs.
